Laser Tools 9312 Injector Removal Tool - for Vauxhall, Opel & MG Direct Injection Petrol

Features and Benefits:

• The late-model 1.0L and 1.4L direct injection petrol engines used across the Vauxhall, Opel, and MG ranges feature a small, centrally mounted fuel injector.

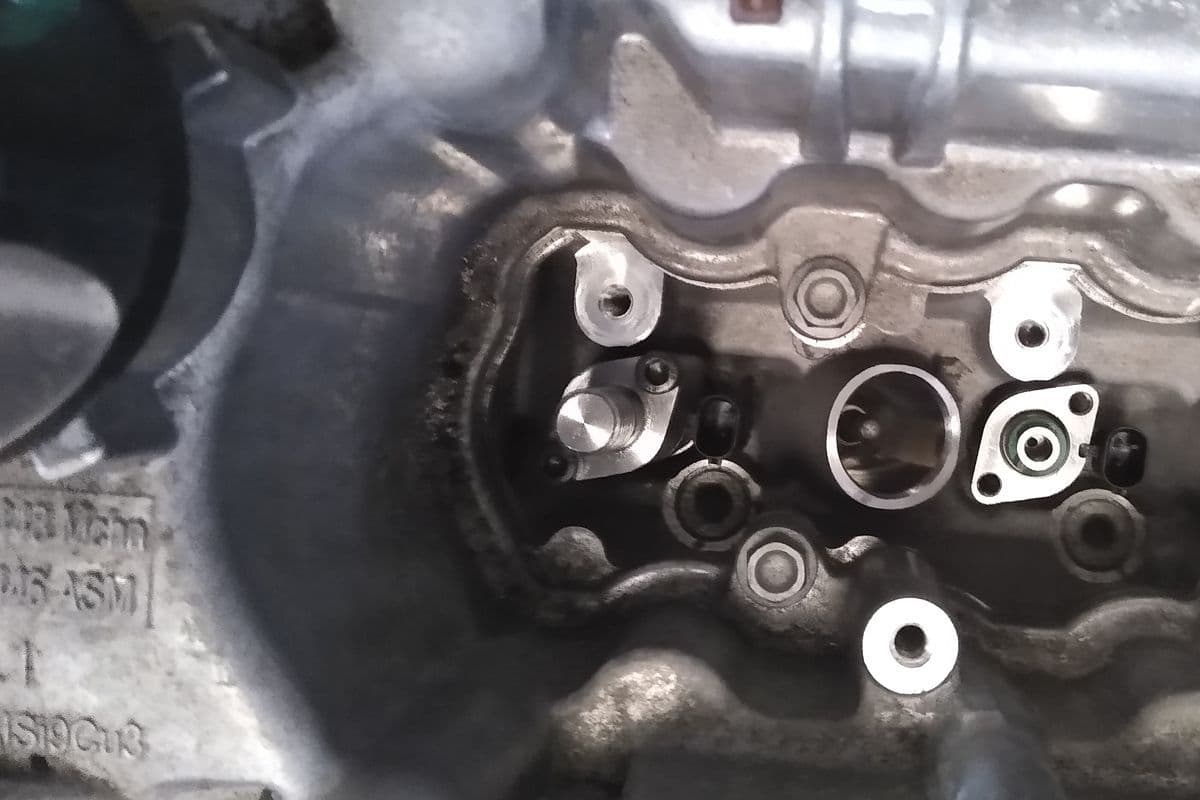

• These injectors are positioned low between the camshafts and in line with the spark plugs.
• It has become apparent that removing these injectors requires significant force.
• The most efficient method is to use an appropriately sized slide hammer and adaptor.

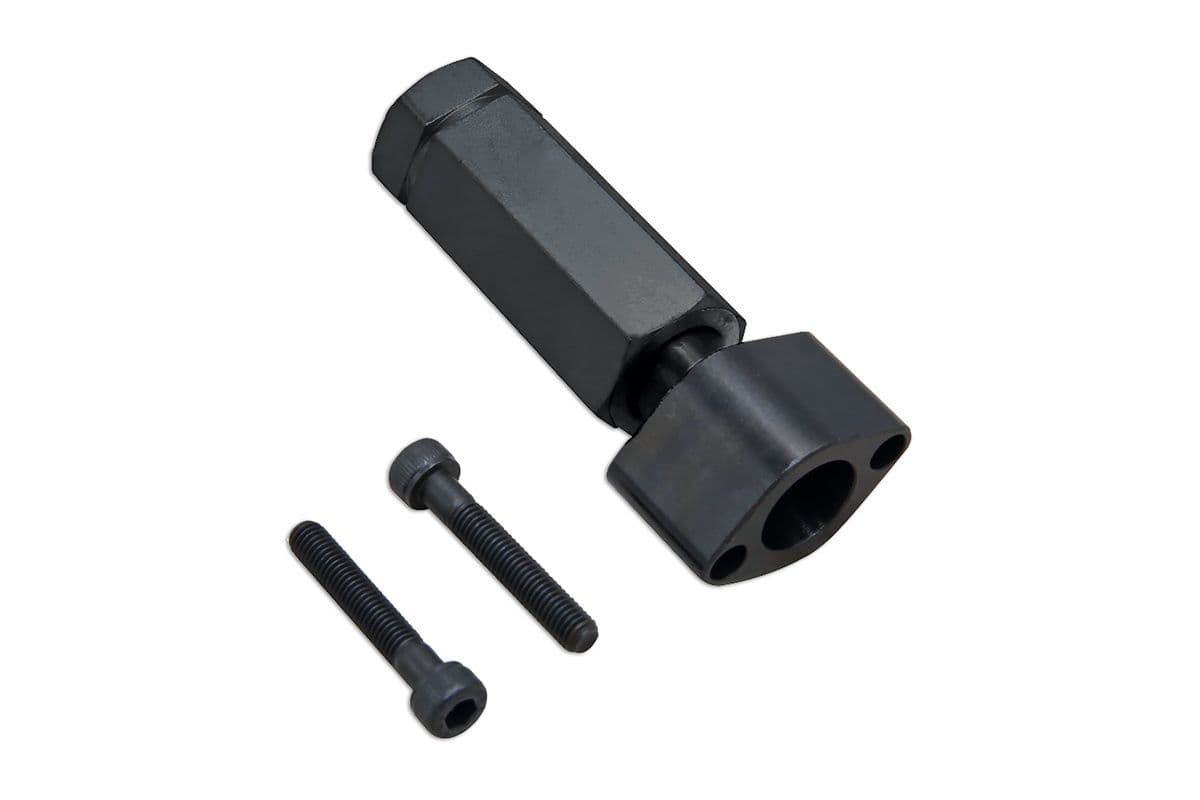

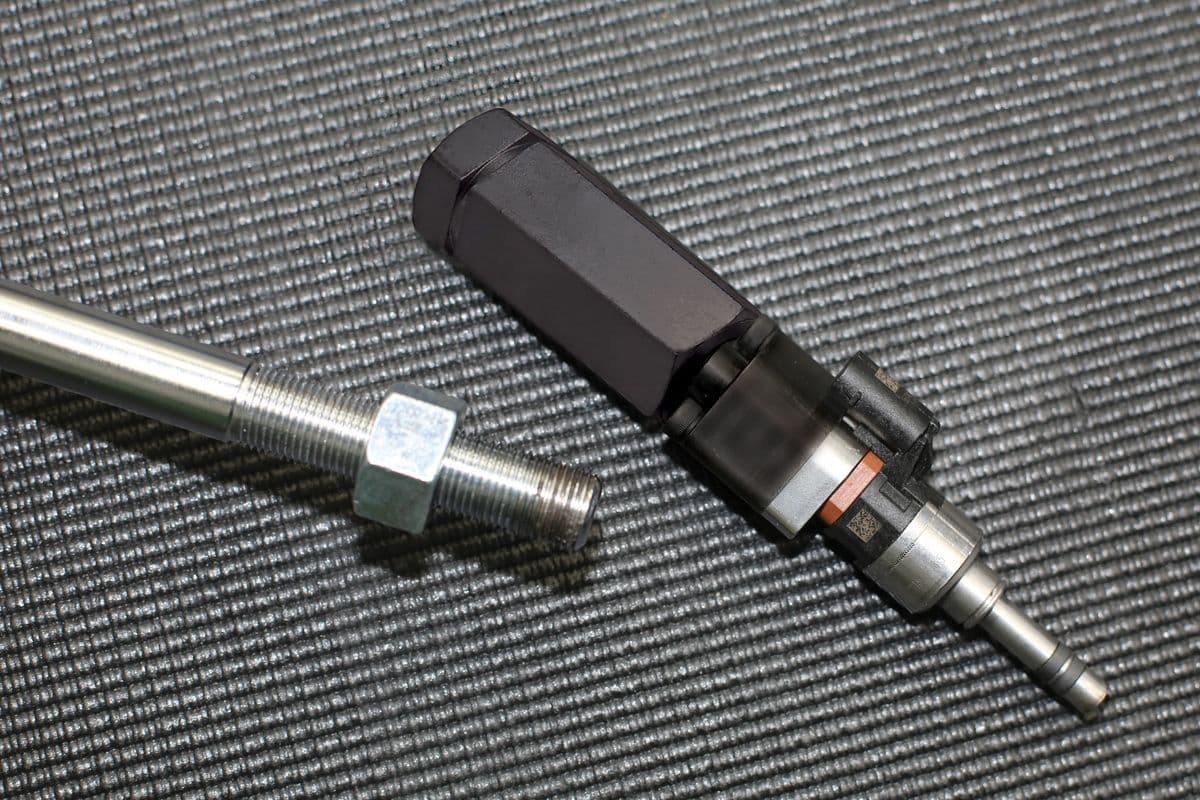

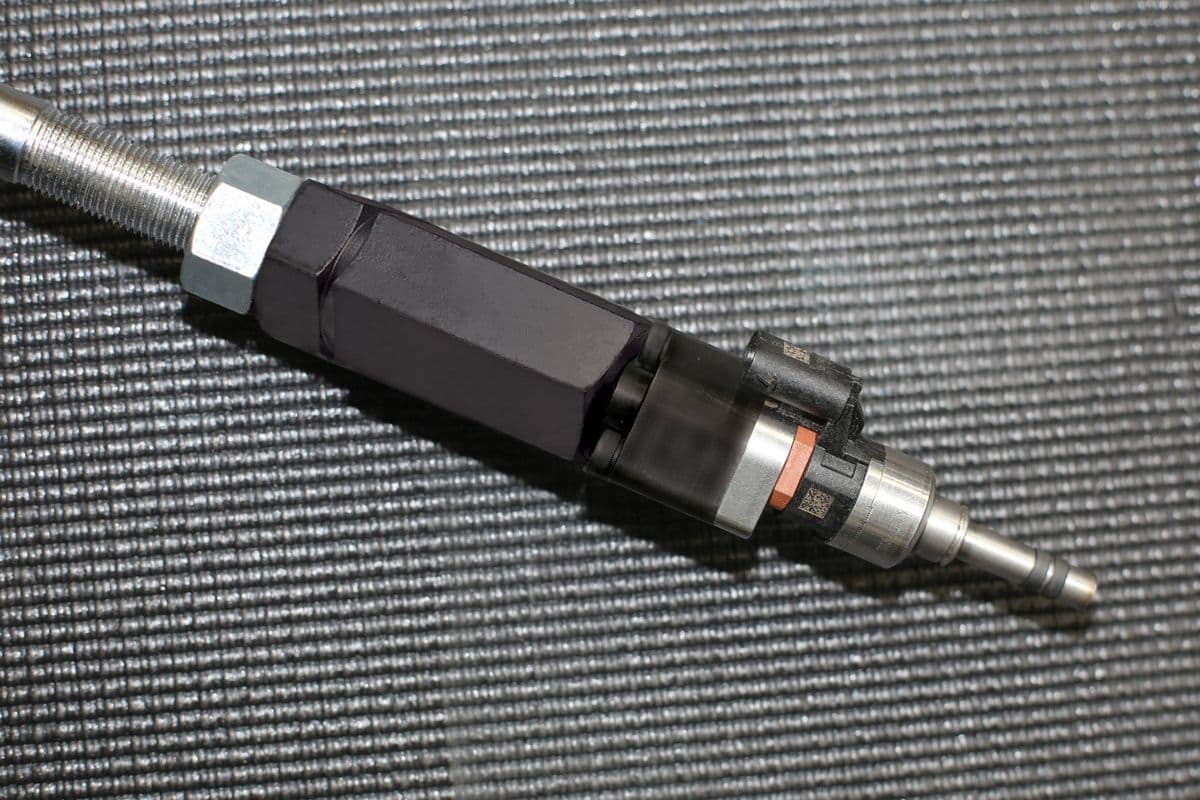

• The Laser 9312 Injector Removal Adaptor is specifically designed to bolt directly to the injector’s fuel rail mounting, allowing the attachment of a 5/8" UNF threaded slide hammer, such as the Laser 2.2kg Slide Hammer (available separately, Part No. 5850).
• NOTE: The injectors are angled toward the front of the engine and must be pulled at the same angle to avoid bending.
• Petrol injector 5/8" UNF slide hammer adaptor.
• Applications include: MG ZS (2017 - 2021), Vauxhall/Opel Adam (2016 - 2020), Astra K (2015 - 2019), Corsa E (2015 - 2020) & Mokka X (2018 - 2020).
• Engine code applications include: 1.0L LE1/B10, 1.4L LDD/D14XEL, D14XER, LE2/D14XFL, D14XFT, LUJ/D14NE, D14NEH, D14NEJ, LUJ/D14NEL & 1.5L 15E4E.
• Manufactured from carbon steel, with a black phosphate finish & alloy steel screws.
• Designed to bolt directly to the 2-bolt fuel pipe mounting plate & used with a 5/8" threaded slide hammer, such as Laser Part No. 5850.
• Equivalent to OEM TEN00140.
