Product Description

Product Description

Traditional slide hammers rely on the repeated movement of a heavy sliding weight to generate impact force. While effective, this method transfers significant shock and vibration through the tool and into the operator's hands and arms, particularly during prolonged use.

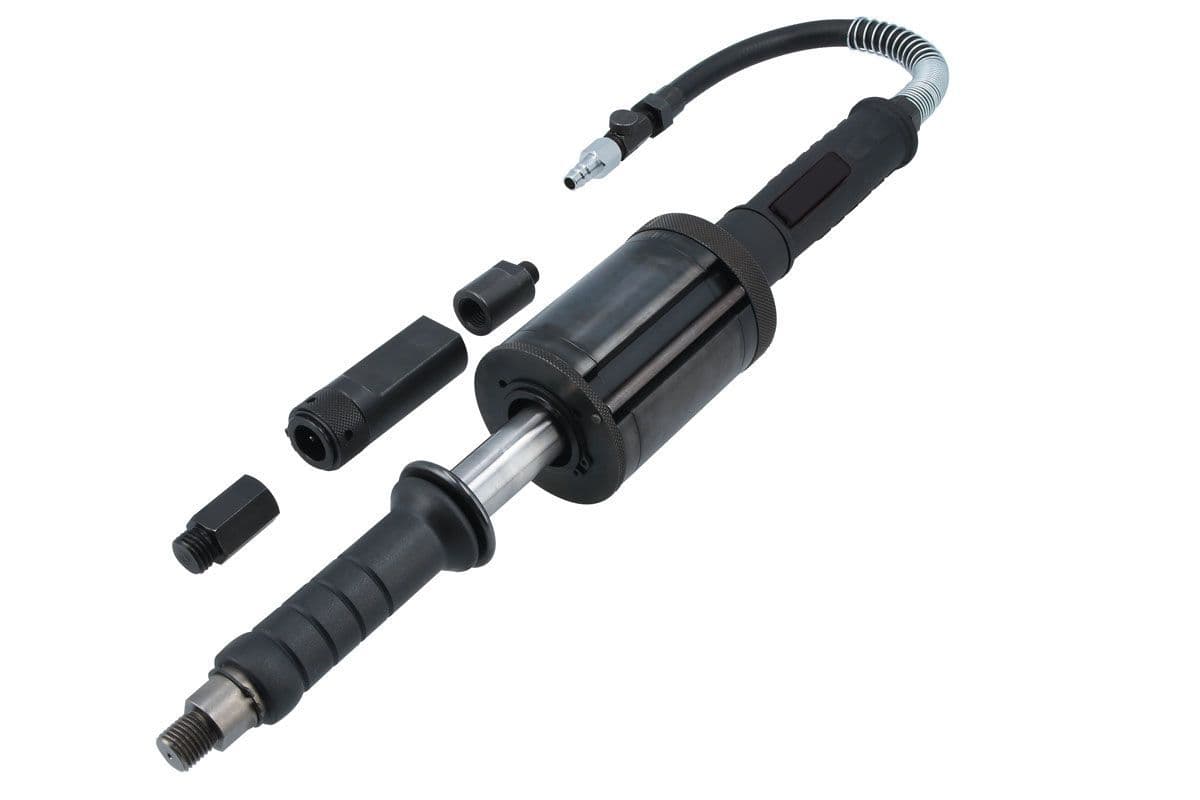

The Laser Tools 9210 Bi Directional Pneumatic Air Slide Hammer has been designed to overcome this issue by using standard workshop compressed air to automatically drive the hammer weight in either direction. This allows the tool to both pull and push components while dramatically reducing the physical effort required from the technician.

The result is a powerful extraction and installation tool capable of generating up to 4000kg equivalent force while helping reduce operator fatigue and improving control during demanding repair procedures.

Built around a central shaft using proven air hammer technology, the 9210 is suitable for a wide range of automotive, bodyshop, engineering and maintenance applications. Whether removing bearings, extracting bushes, pulling damaged panels or installing components, the pneumatic operation delivers consistent performance with less strain on the user.

For customers viewing the product video, the advantage becomes immediately clear. The pneumatic action performs the hard work while reducing the repeated impact normally associated with conventional slide hammers.


Features & Benefits

  • Bi directional operation for both pulling and pushing applications.
  • Pneumatic design reduces shock loading compared to conventional slide hammers.
  • Helps minimise operator fatigue during prolonged use.
  • Generates up to 4000kg equivalent pulling force.
  • Generates up to 4000kg equivalent hammering force.
  • Uses standard workshop compressed air.
  • Suitable for extraction and installation tasks.
  • Central shaft air hammer design.
  • Includes thread adaptors for a wide range of applications.
  • Professional workshop quality construction.

Ideal For

  • Bearing removal
  • Bush extraction and installation
  • Suspension repairs
  • Bodyshop repairs
  • Panel pulling operations
  • Commercial vehicle workshops
  • Agricultural machinery maintenance
  • Engineering workshops
  • Industrial maintenance applications

Technical Specifications

  • Manufacturer: Laser Tools
  • Part Number: 9210
  • Product Type: Bi Directional Pneumatic Air Slide Hammer
  • Main Thread: M18 x 2.0mm
  • Thread Adaptors Included:
    • M14 x 1.5mm
    • 5/8" UNF
  • Air Chisel Adaptor Included
  • Pulling BPM: 1300
  • Pulling Force: Equivalent to 4000kg
  • Hammer BPM: 1300
  • Hammer Force: Equivalent to 4000kg
  • Working Pressure: 125 PSI
  • Recommended Air Pressure: 125 PSI
  • Air Consumption: 36 CFM (approx.)
  • Air Inlet: 1/4" BSP
  • Minimum Hose Size: 3/8"
  • Noise Level: 98dB
  • Weight: 4.9kg
  • Length: 516mm

Workshop Notes

  • Designed to reduce the physical effort associated with traditional slide hammer operation.
  • Suitable for both extraction and installation procedures.
  • Requires a workshop compressed air supply.
  • Ensure adequate air flow and pressure are available for optimum performance.
  • Inspect adaptors and threads before use.
  • Always wear suitable eye and hearing protection.

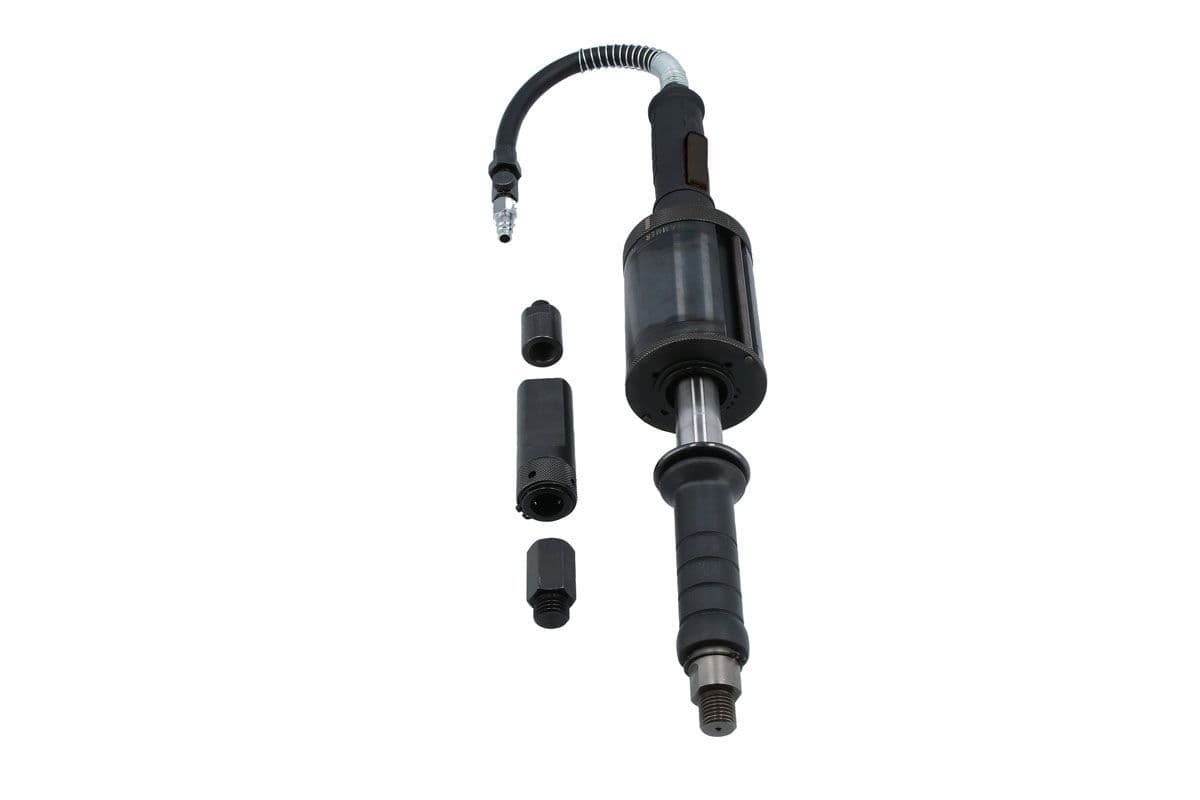

Box Contents

  • Bi Directional Pneumatic Air Slide Hammer
  • M14 x 1.5 Thread Adaptor
  • 5/8" UNF Thread Adaptor
  • Air Chisel Adaptor
  • User Instructions

(Refer to manufacturer images for exact contents.)


Why Choose Laser Tools?

Laser Tools develops innovative workshop equipment designed to improve efficiency, safety and technician comfort. The 9210 Bi Directional Pneumatic Air Slide Hammer delivers powerful extraction and installation performance while helping reduce vibration, fatigue and repetitive impact stress, making it an excellent choice for professional workshops and Bodyshop's carrying out demanding repair work.

Specifications

Brand
Laser Tools
Product Code
9210
Weight
7.7kg

Customer Reviews

Laser Tools 9210 Bi-Directional Pneumatic Air/Slide Hammer

Product Code 9210

The Laser Tools 9210 Bi Directional Pneumatic Air Slide Hammer is an innovative air powered extraction and installation tool designed to deliver powerful pulling and pushing force while significantly reducing operator fatigue. Using standard workshop compressed air, it generates up to 4000kg equivalent force without the heavy impact and vibration associated with traditional manual slide hammers. Ideal for bearing removal, bush extraction, bodyshop repairs and workshop maintenance, it provides a faster, safer and more comfortable alternative to conventional slide hammer designs.

Explore the full contents, features and specifications below.
