Laser Tools 9177 Injector Extractor Set For PSA/Ford DW10 Delphi Piezo Injectors

Features and Benefits:

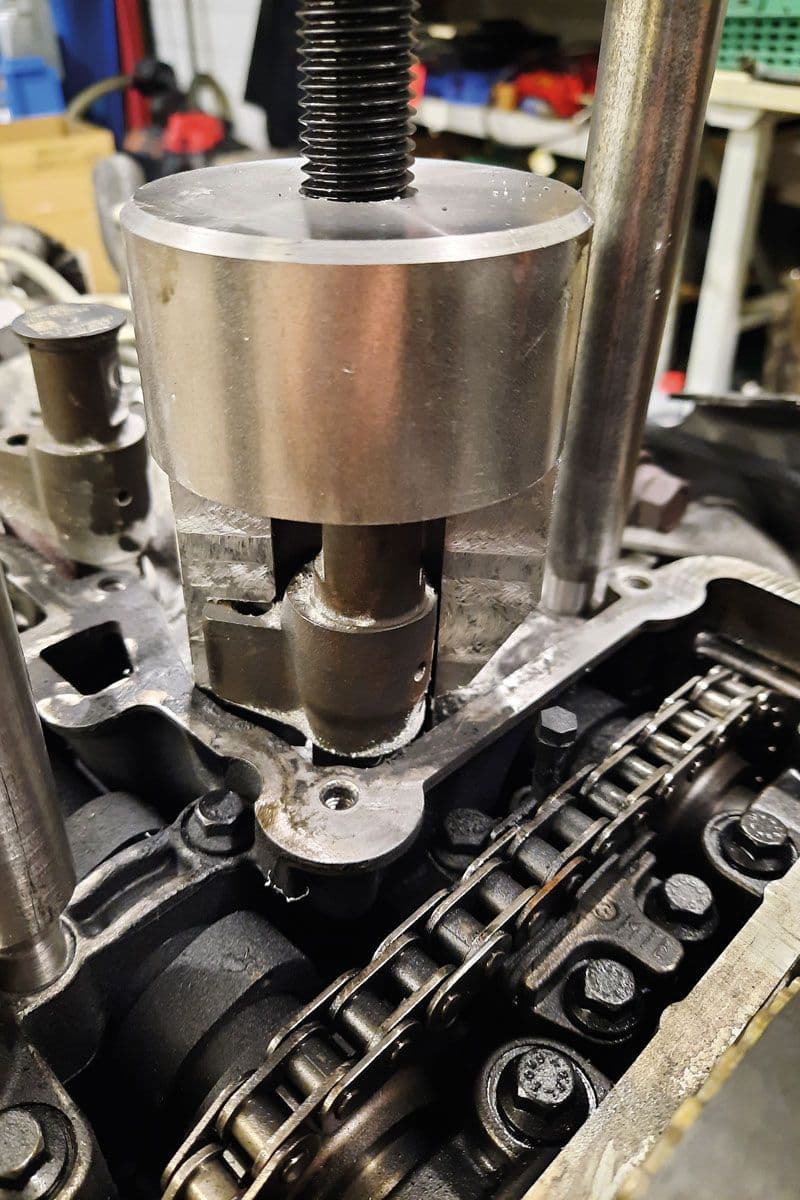

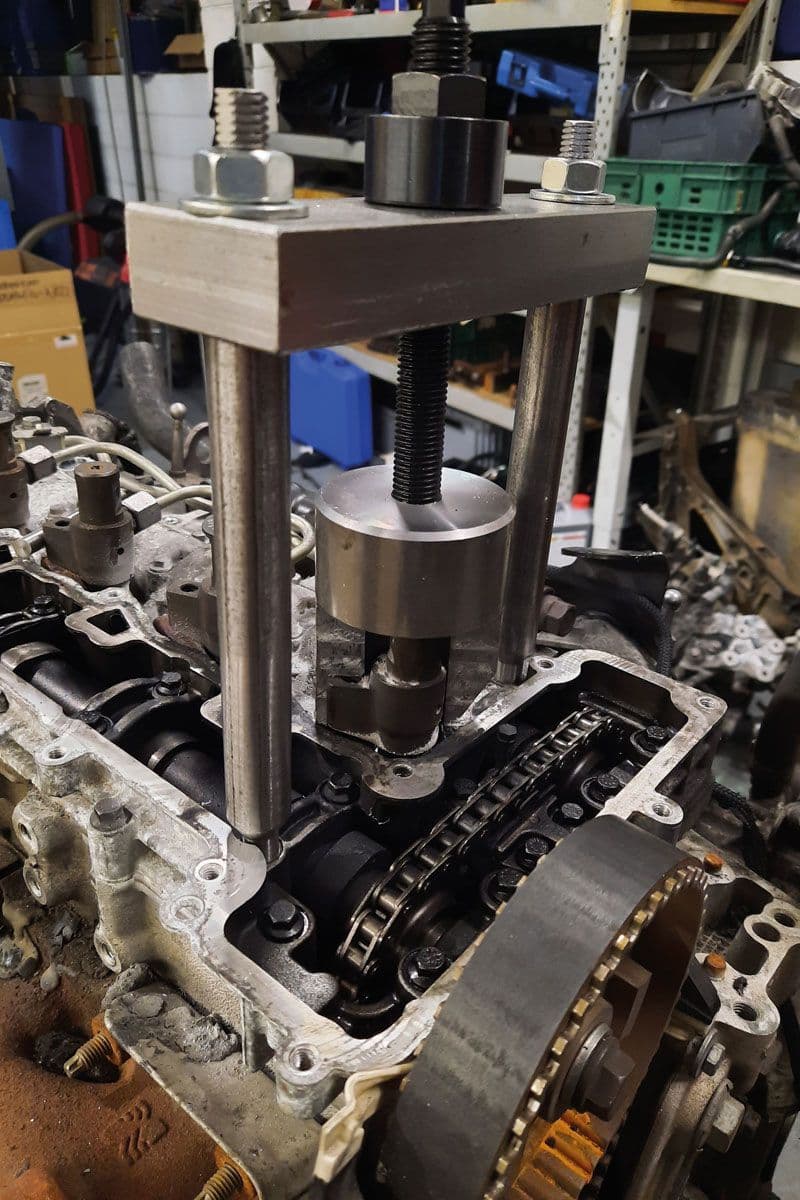

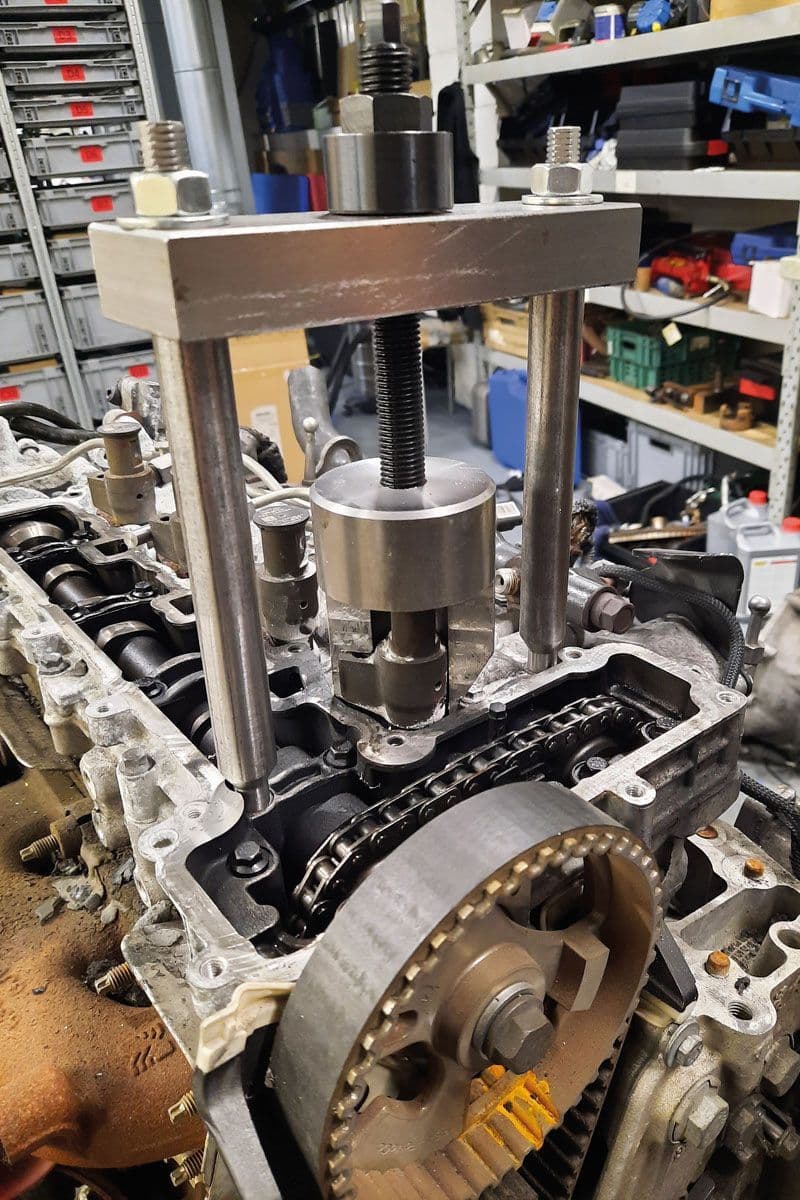

• The Laser 9177 injector puller set has been designed to pull the Piezo style injectors fitted to Ford & Stellantis DW10 engines out in one piece.
• The kit includes a threaded adaptor that allows the injector adaptor body to be used on a 5/8" slide hammer or Laser injector air hammer extractor (Part No. 6263).

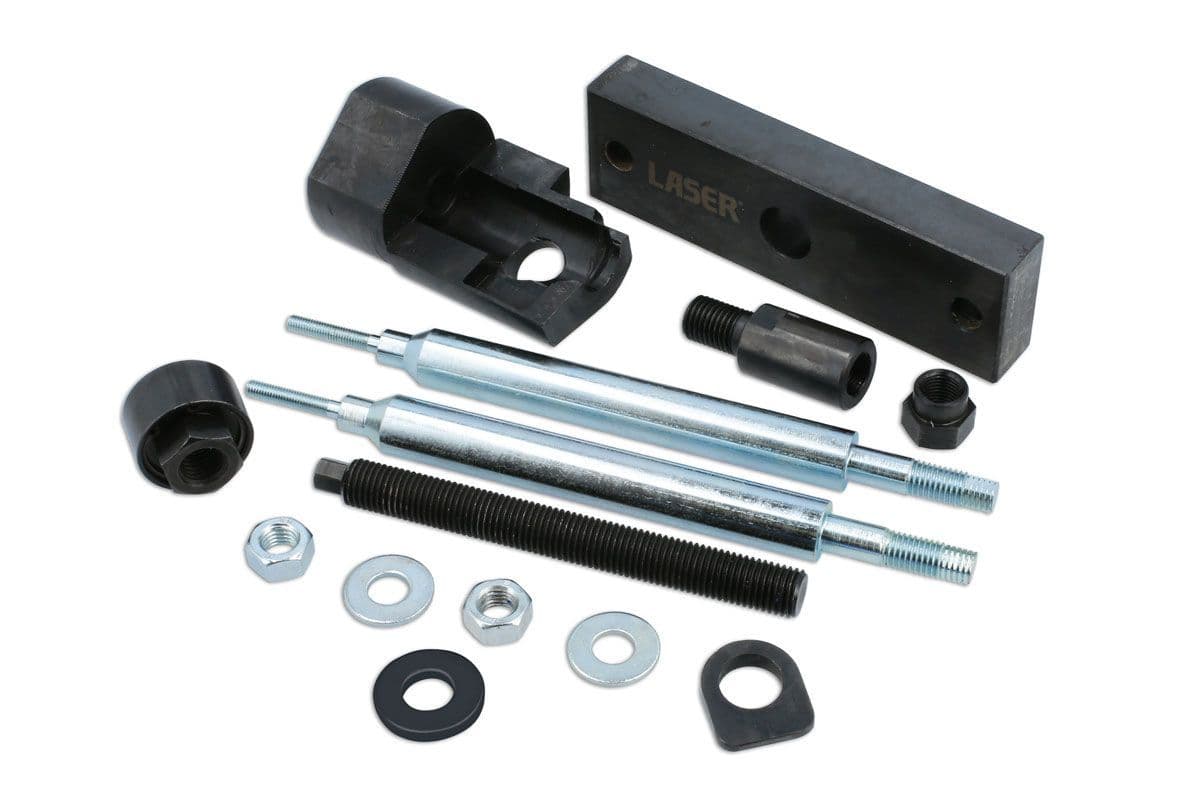

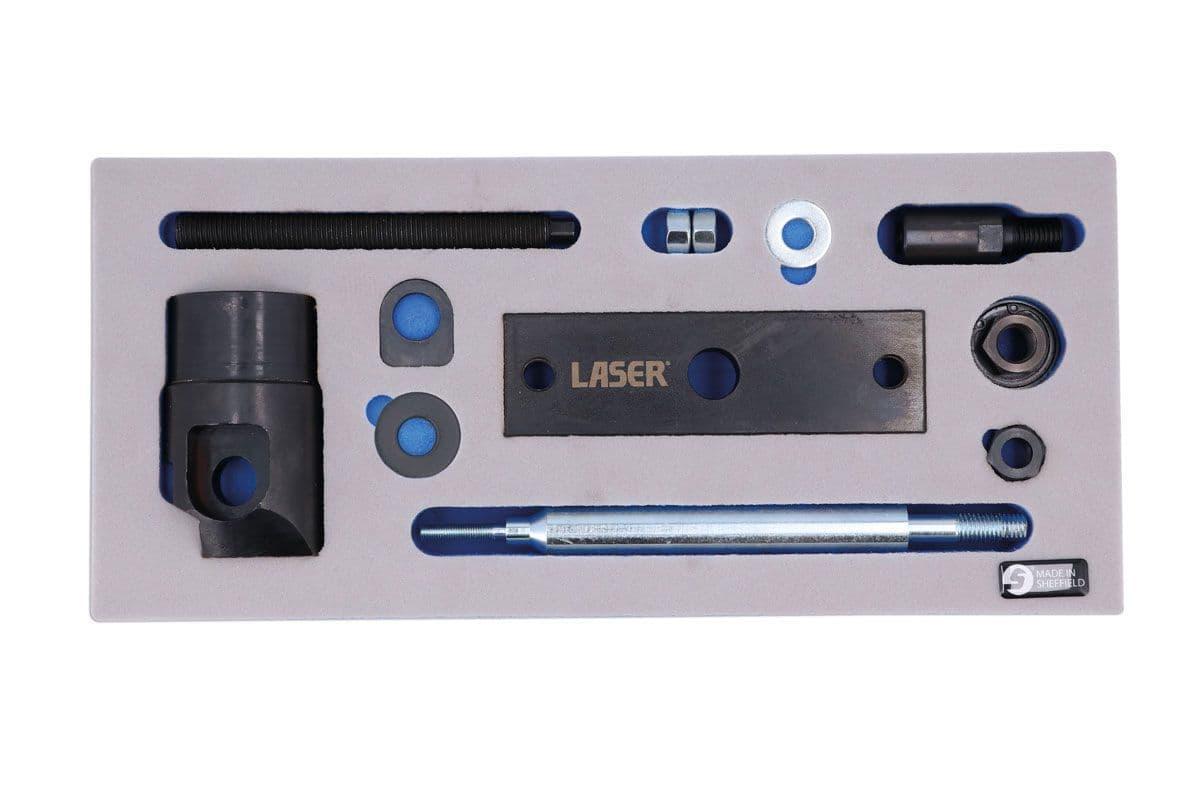

• Full extraction kit including frame with force screw & thrust nut with integral bearing for extracting diesel injectors in one piece, allowing them to be refitted.
• Applications include: Citroën, Ford, Opel/Vauxhall, Peugeot, Toyota fitted with DW10 2.0L diesel engines.
• Engine applications include: 2.0L DW10 diesel engines.
• Specifically designed for Piezo style injectors.
• Made in Sheffield.
• UK Registered Design.
• IMPORTANT: ensure the force screw is well lubricated with molybdenum disulphide grease before use.
