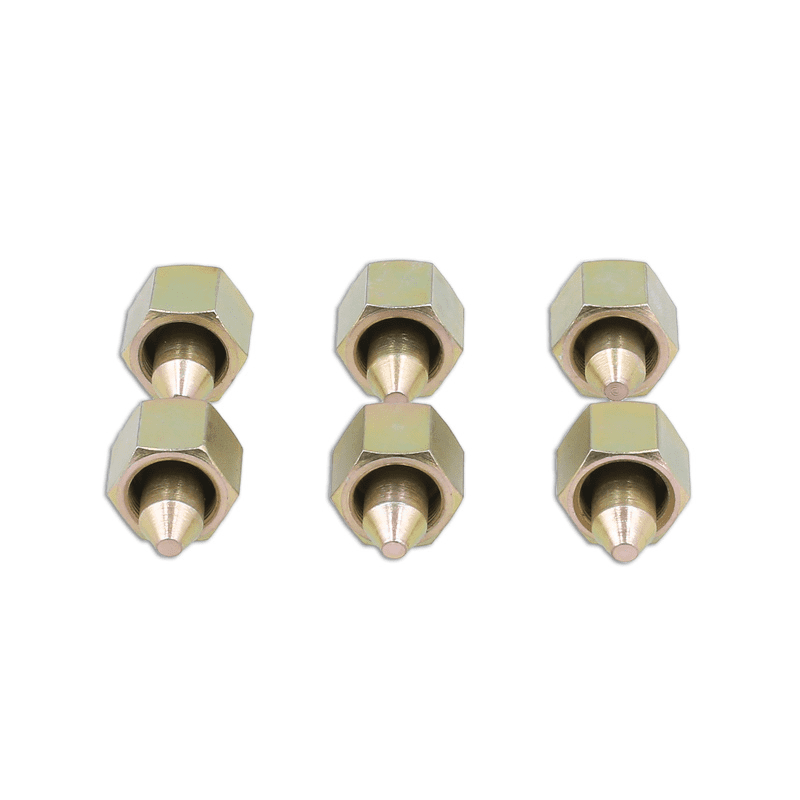

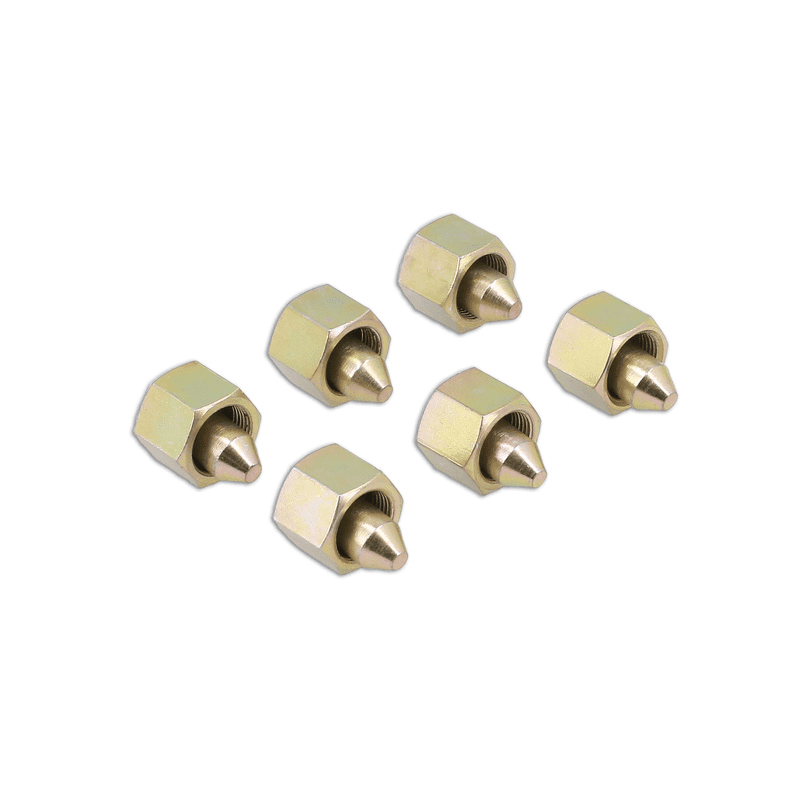

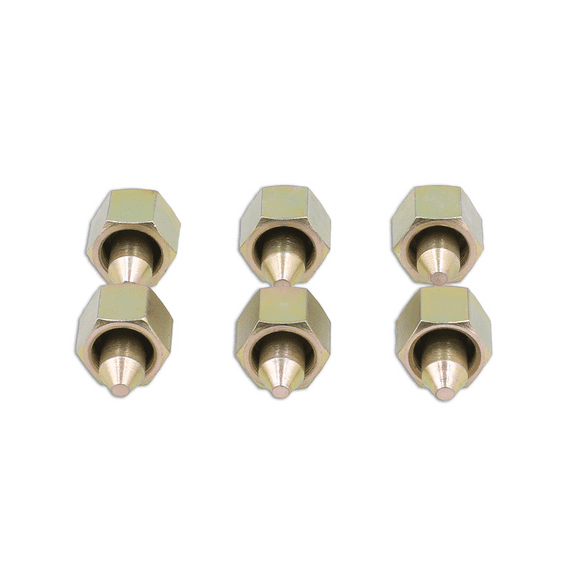

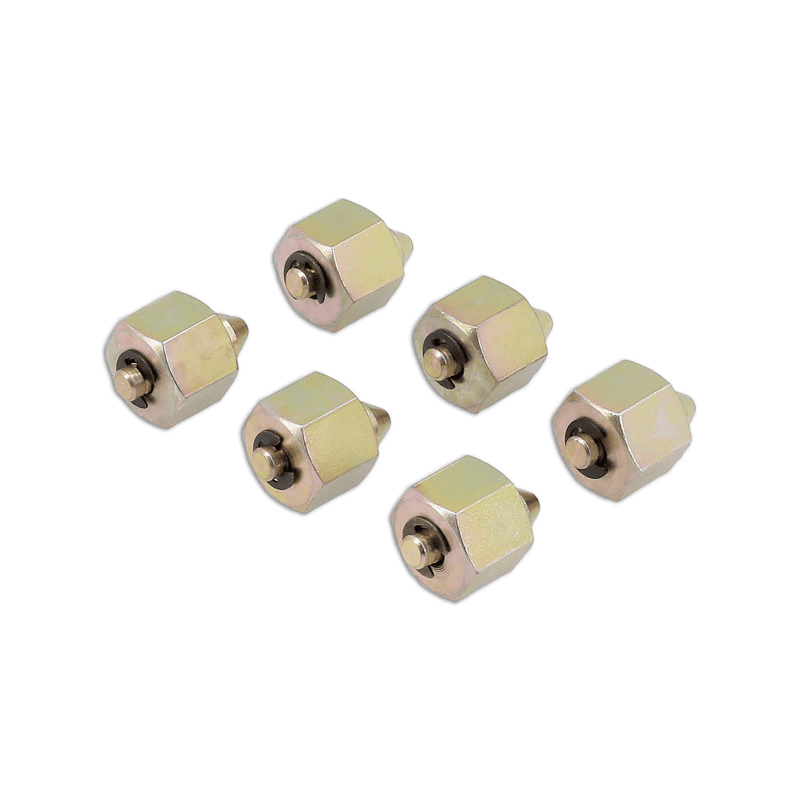

Laser 8340 M15 Injection Fuel Rail Blanking & Sealing Plug Set Fits BMW CR Diesels

Features and Benefits:

• The BMW N47 (2.0L) and N57 (3.0L) diesel engines are equipped with a high pressure Bosch fuel rail just like any other common rail diesel engine, but they use M15 threads where the injection pipes fit the rail rather than the traditional M12 and M14 connectors.
• This makes isolating individual fuel lines when running injector and rail pressure diagnostics a challenge.

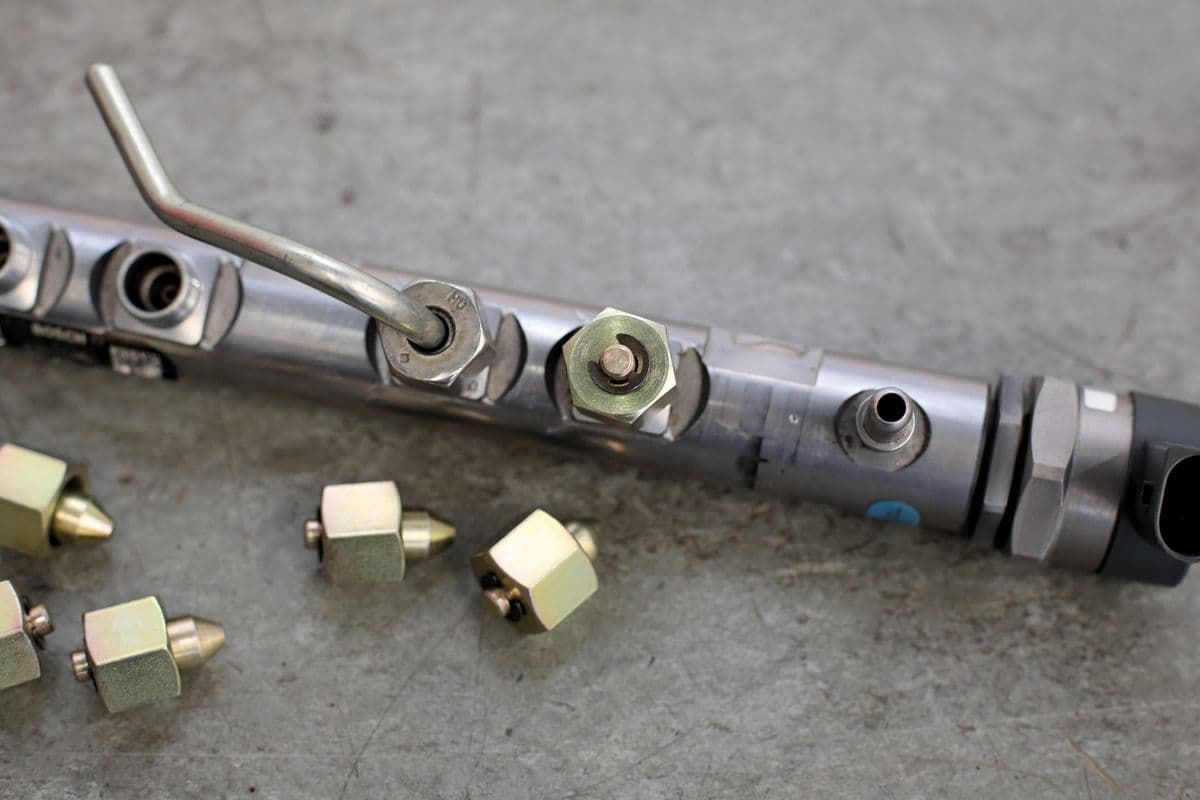

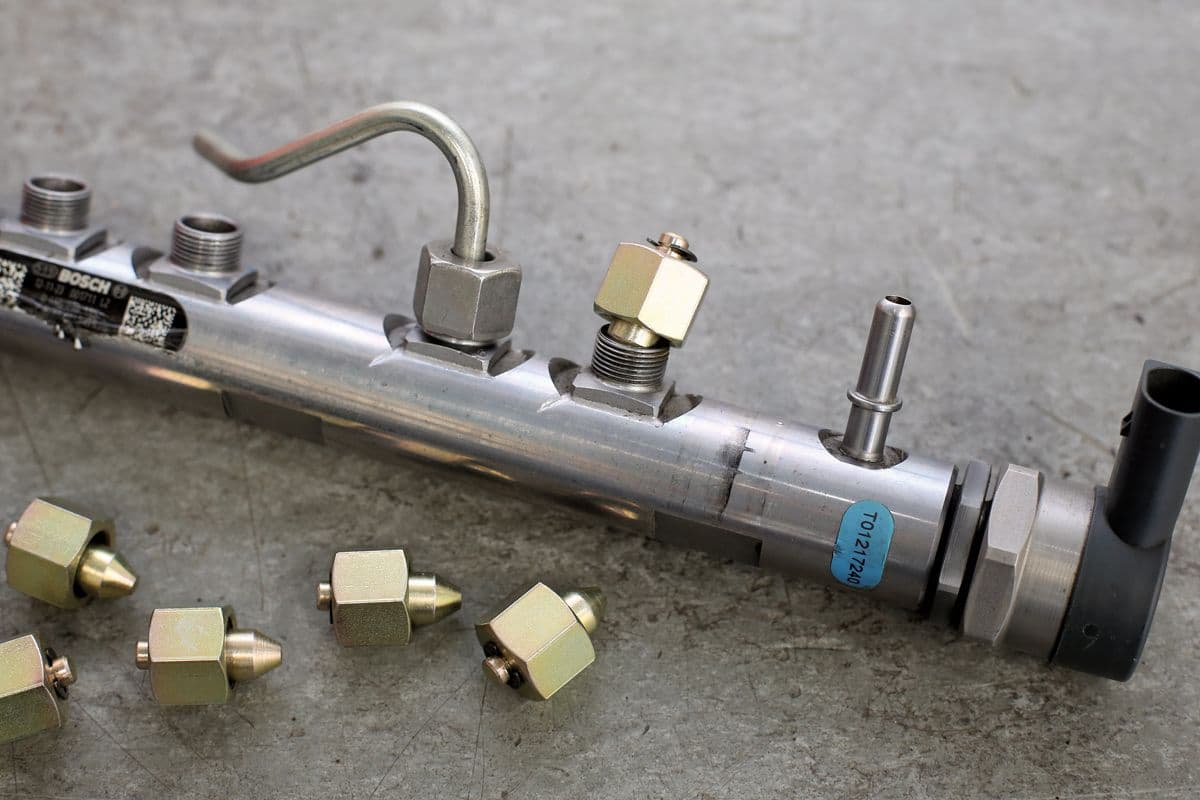

• This new M15 injection fuel rail blanking & sealing plug set provides the necessary and correctly sized metal blanking plugs that allow the technician to blank off and seal individual injector circuits when performing pressure diagnostic tests.
• Applications include: BMW 1 Series (2007 - 2015), 3 Series (from 2008), 4 Series (from 2013), 5 Series (2009 - 2017), 6 Series (2011 - 2019), 7 Series (2008 - 2015), X1 (2009 - 2015), X3 (2011 - 2017), X4 (2014 - 2018), X5 (2010 - 2018), X6 (2010 - 2019).
• Engine applications include: N47 2.0L diesel, N57 3.0L diesel.Set of 6, M15 x 1mm high pressure fuel rail blanking plugs.
• Made in Sheffield.
• Designed to allow fuel system pressure testing and seal the system to prevent dirt ingress during system service and maintenance.
• For standard M12 & M14 equipped CRD systems, use Laser Injection Rail Blanking Plugs - CRD, Part No. 7668.
