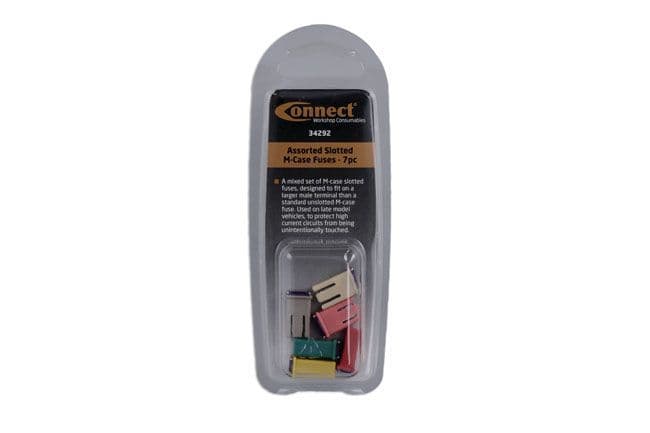

Connect 34292 Assorted Slotted M-Case Fuses 7pc Cartridge Style

Features and Benefits:

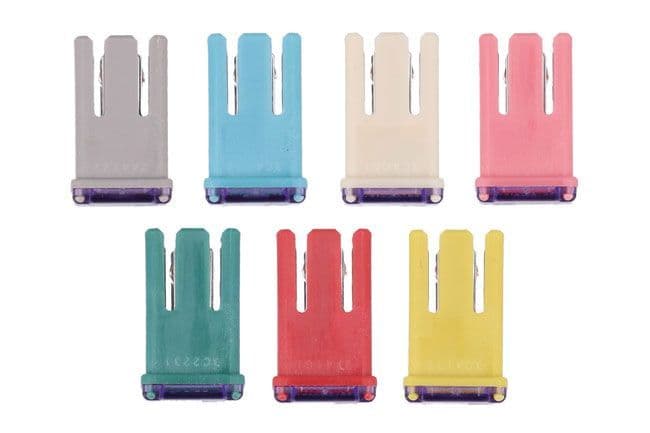

• A mixed set of M-case slotted fuses, designed to fit on a larger male terminal than a standard unslotted M-case fuse.
• Used on late model vehicles to not only save space and weight, but also to protect high current circuits from being unintentionally touched.
• As with other Dealer No More Kits, all of the contents are available as top-up packs so the box can be refilled.

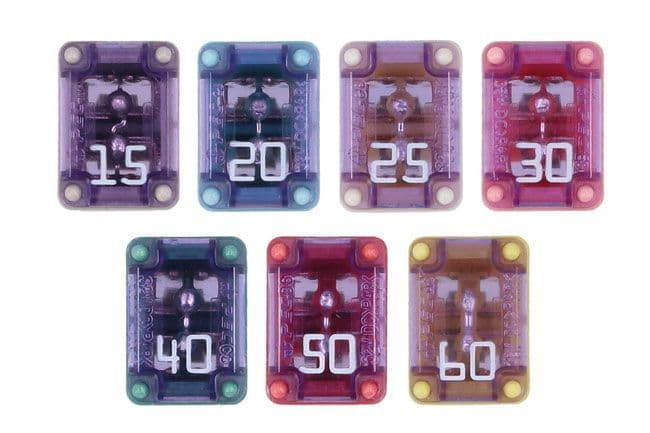

• Kit contains: 1x 15A, 1x 20A, 1x 25A, 1x 30A, 1x 40A, 1x 50A, 1x 60A M-Case slotted cartridge style fuses.
• Fuse material: copper.
• Housing material: thermoplastic.
• Voltage rating: 32V DC max.
• Conforms to SAE J2741 & ISO 8820-4.
• RoHS & REACH compliant.
• Top up packs available, please see Connect part nis. 34285 (15A), 34286 (20A), 34287 (25A), 34288 (30A), 34289 (40A), 34290 (50A), 34291 (60A).
