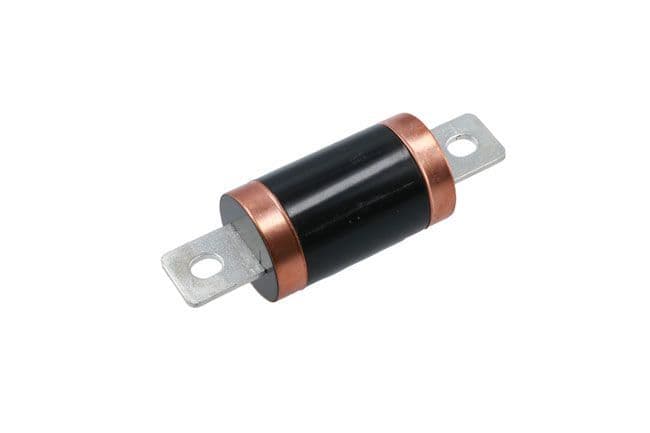

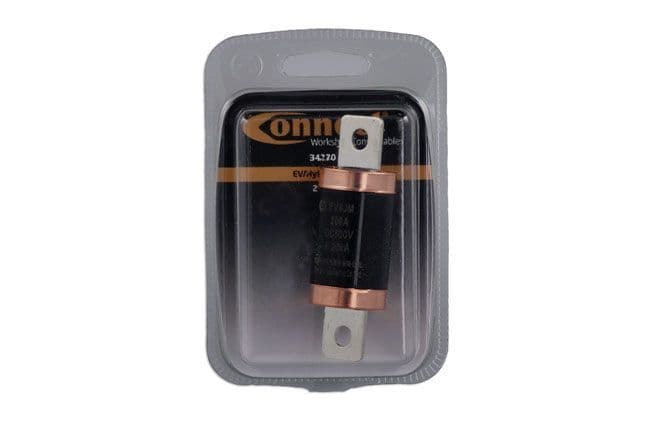

Connect 34270 EV/Hybrid Fuse 200A 1pc Bolted Tag Fuse HEV Bolt In Style

Features and Benefits:

• A single 200 Amp high voltage BEV, HEV & PHEV bolt in style fuse, rated to 500V DC.
• Fuses used in high voltage circuits must be securely mounted to prevent points of high resistance that in turn generate unwanted hot spots.
• This is why fuses for high voltage automotive applications (500V) are bolt in style.
• It is important that the correct torque is applied to the fixings bolt.
• Please ensure the fuse selected meets the requirement of the application and OEM torque setting are applied.
• 200 Amp bolted tag fuse; 93mm L x 17.5mm x 30mm⌀.
• Breaking Capacity: 20kA.
• High voltage HEV bolt in style fuse.
• Performance conforms to JASOD622; environmental conformance to ISO8820 JASO D622 & GB/T31465.
• CE & RoHS compliant.
