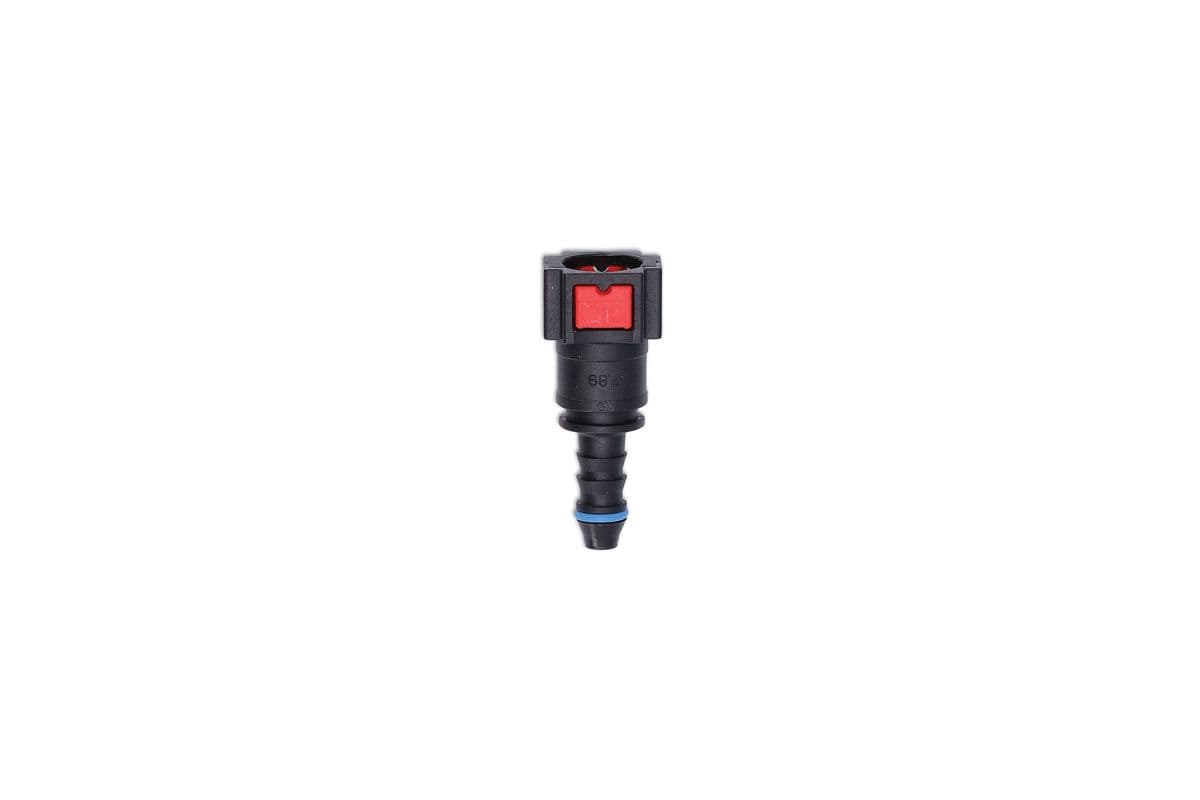

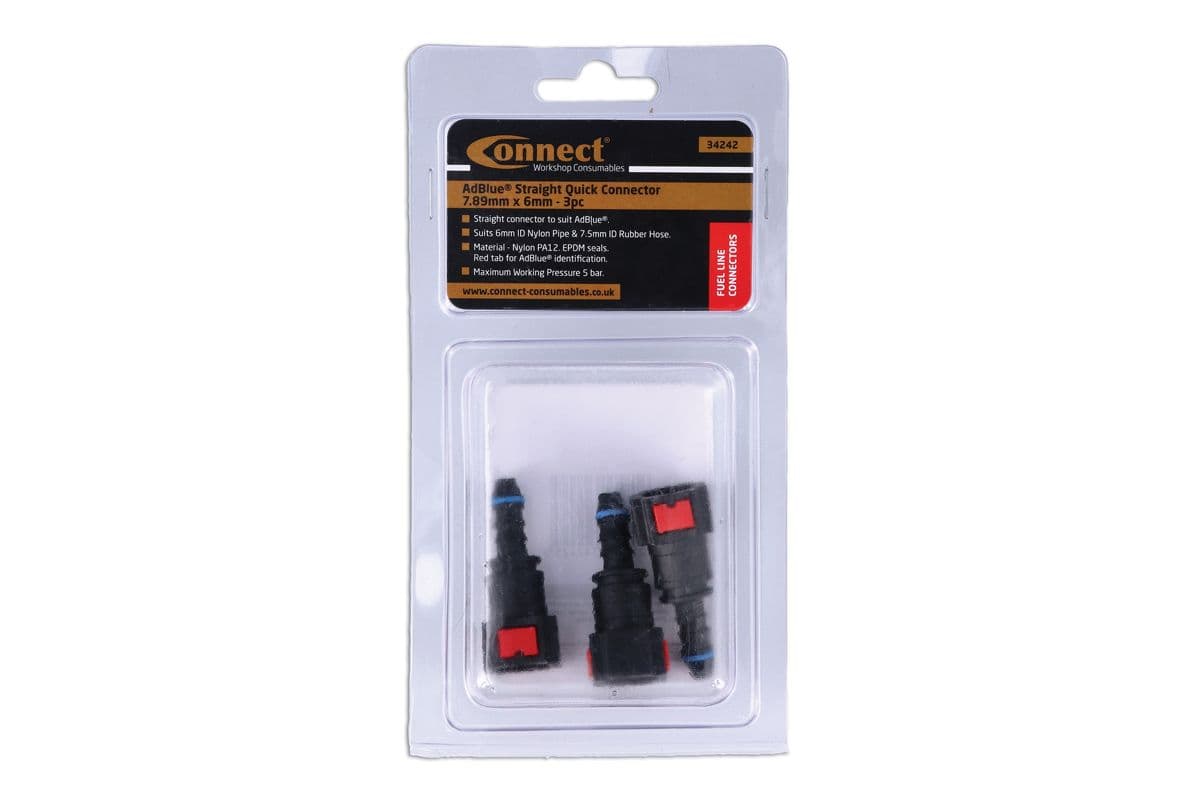

Connect 34242 Straight AdBlue® Quick Connectors 7.89 x 6mm 3pc

Features and Benefits:

• A set of 3 straight AdBlue® fuel line quick connectors allowing for tight connections on 6mm fuel lines.
• Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air.
• The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks.
• To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933.
• Straight connectors for AdBlue®, suits: 6mm nylon pipe; 7.5mm ID rubber hose.
• Constant running pressure: 7 bar (101psi); max pressure: 9 bar (130psi).
• Operating temperature: -40°C to 70°C.
• Body manufactured from nylon PA12; O-ring from EPDM seal.
• Made to SAE J2044-2009 standards.
• Red tab for AdBlue® identification (note: standard fuel connectors have grey tabs).
• Included in assorted box of straight AdBlue® quick fuel line connectors, see Connect Part No. 34227.
• Also available in mixed set of straight & angled connectors, Part No. 34226.
