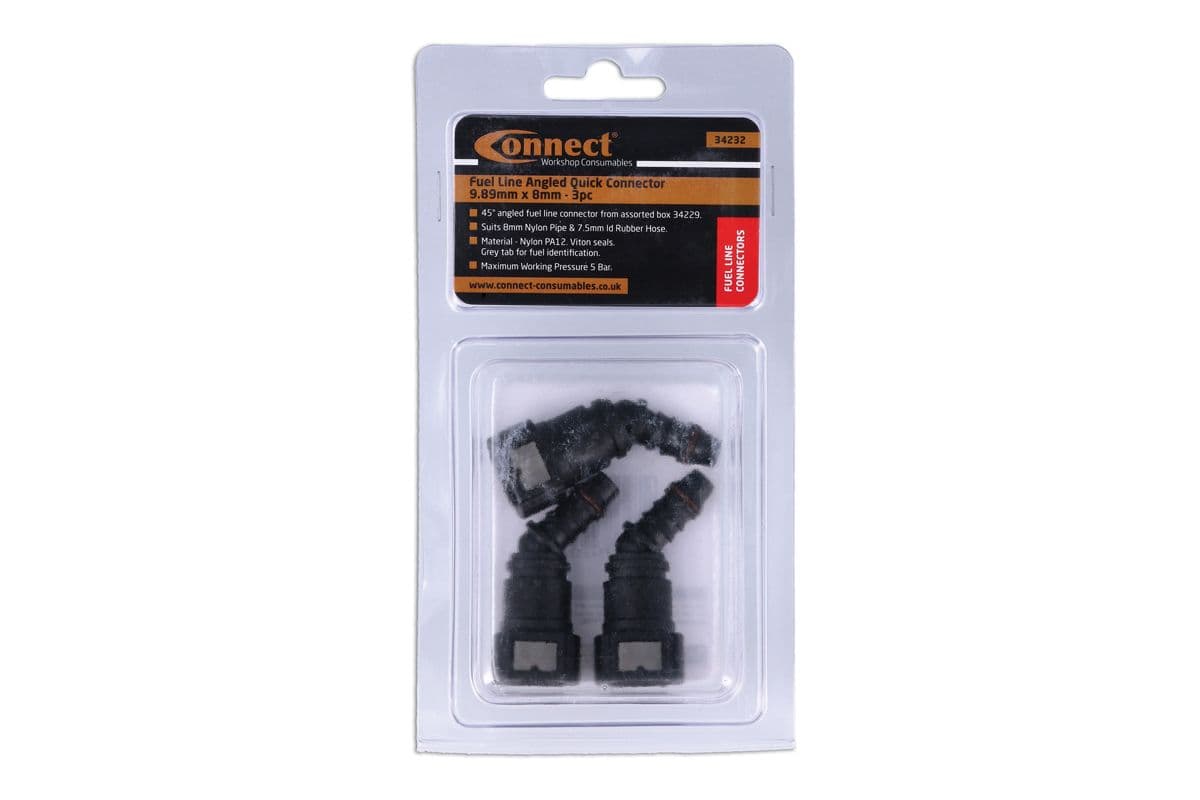

Connect 34232 45° Angled Fuel Line Quick Connectors 9.89 x 8mm 3pc

Features and Benefits:

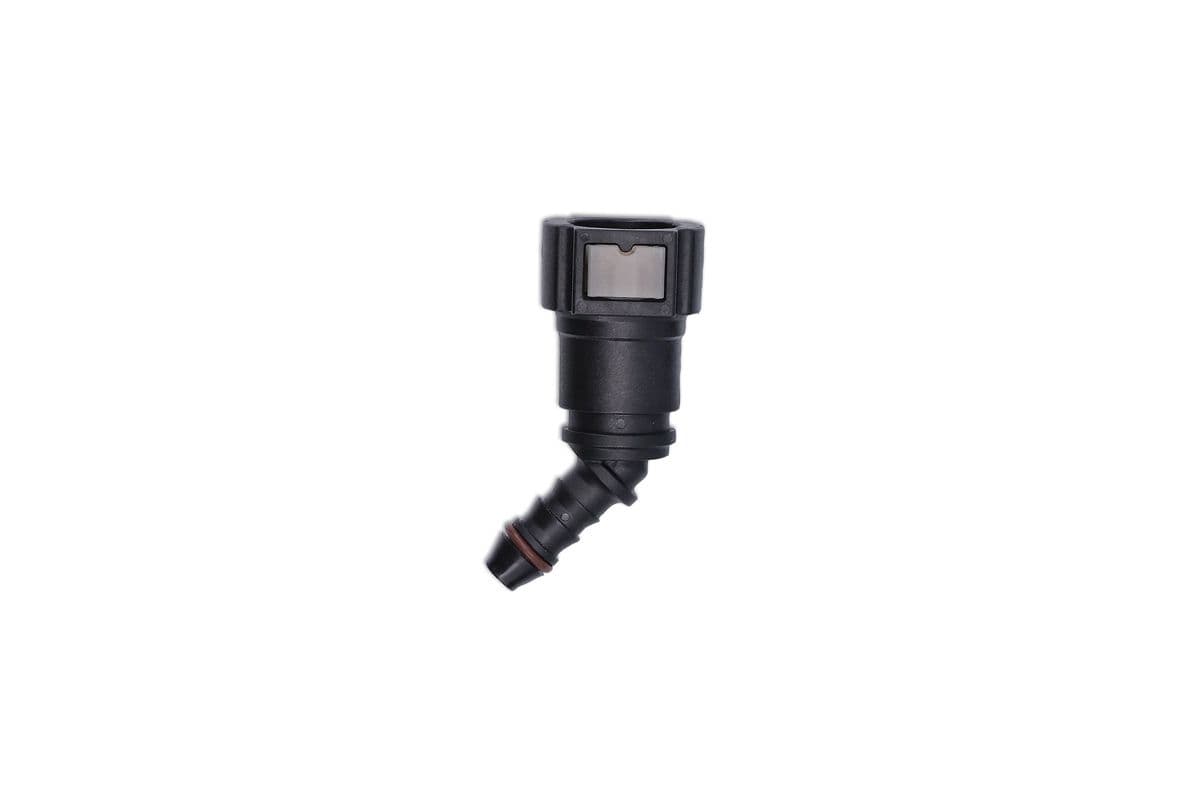

• A set of 3 angled fuel line quick connectors allowing for tight connections on 8mm fuel lines.
• The 45° angle provides easier fixing in tight spaces.
• Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air.
• The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks.
• 45° angled connectors, suits: 8mm nylon pipe; 7.5mm ID rubber hose.
• Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi).
• Operating temperature: -40°C to 120°C.
• Body manufactured from nylon PA12; O-ring from FKM seal (viton).
• Made to SAE J2044-2009 standards.
• Grey tab for fuel identification (note: AdBlue® specific connectors have red tabs).
• Included in assorted box of 45° angled quick fuel line connectors, see Connect Part No. 34229.
